Thunderbolt 4 BLAZE 허브
Thunderbolt 4 BLAZE 허브
정가
₩284,990
판매 가격
₩284,990
정가
₩284,990
수령 가능 여부를 로드할 수 없습니다.
사양
사양
다운로드
다운로드
결제 및 보안
결제 방법
귀하의 결제 정보는 안전하게 처리됩니다. 당사는 신용카드 정보를 저장하지 않으며 귀하의 신용카드 정보에 접근할 수 없습니다.
Thunderbolt 4의 놀라운 성능
속도와 성능이 중요한 경우를 위해 설계된 허브는 외부 디스플레이와 외부 하드 드라이브와 같은 고속 주변 장치를 연결하기 위한 대규모 40Gbps 대역폭을 제공합니다. 단일 Thunderbolt 포트만 제공하는 기존 Thunderbolt 장치와 달리 ALOGIC BLAZE 허브는 최대 3개의 다운스트림 Thunderbolt 4/USB4.0 주변 장치를 연결할 수 있으며 창의적인 전문가에게 탁월한 생산성을 제공합니다.

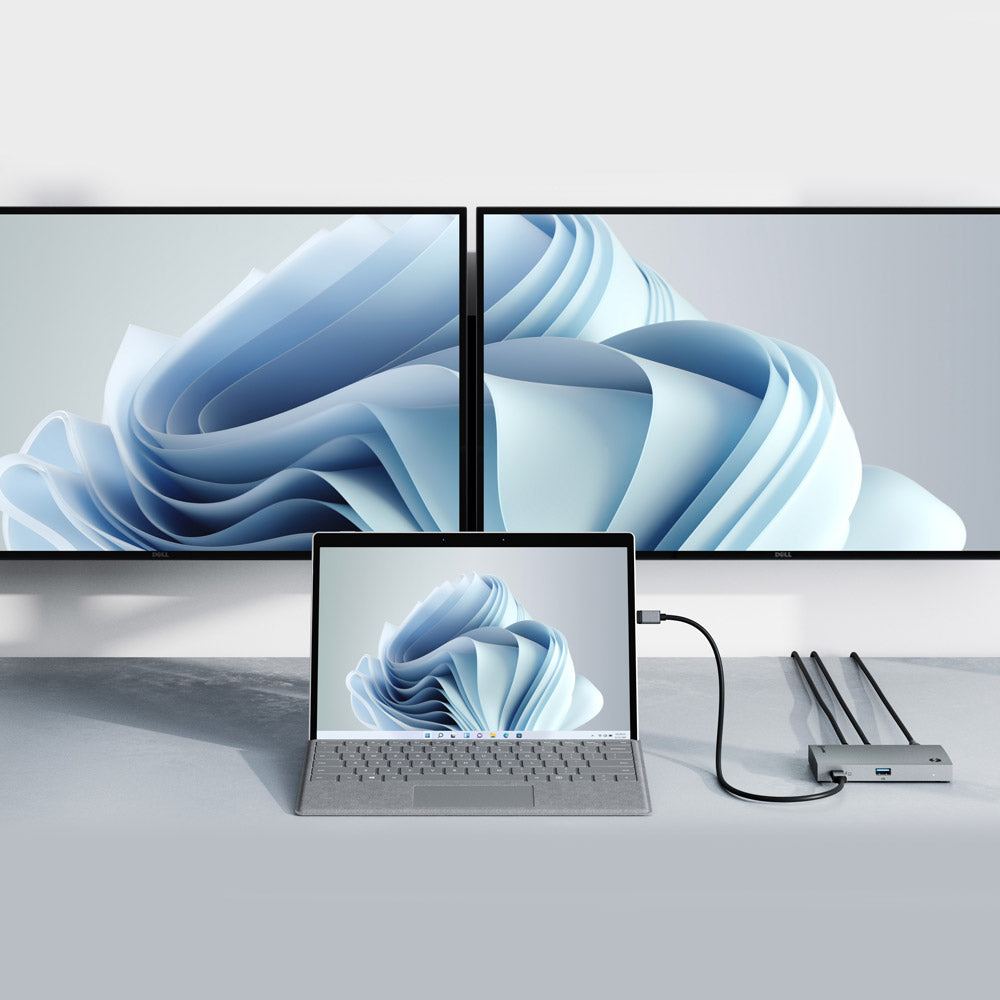

듀얼 초고화질 디스플레이: 4K@60Hz
BLAZE 허브는 다음과 같이 Thunderbolt가 장착된 호스트 컴퓨터에 대한 듀얼 모니터 지원과 USB를 사용하여 연결된 호스트에 대한 단일 모니터 지원을 제공합니다.
- Thunderbolt 3 또는 4: 60Hz*의 듀얼 4K 모니터
- USB-C USB 3.x: 최대 60Hz의 단일 4K 모니터†

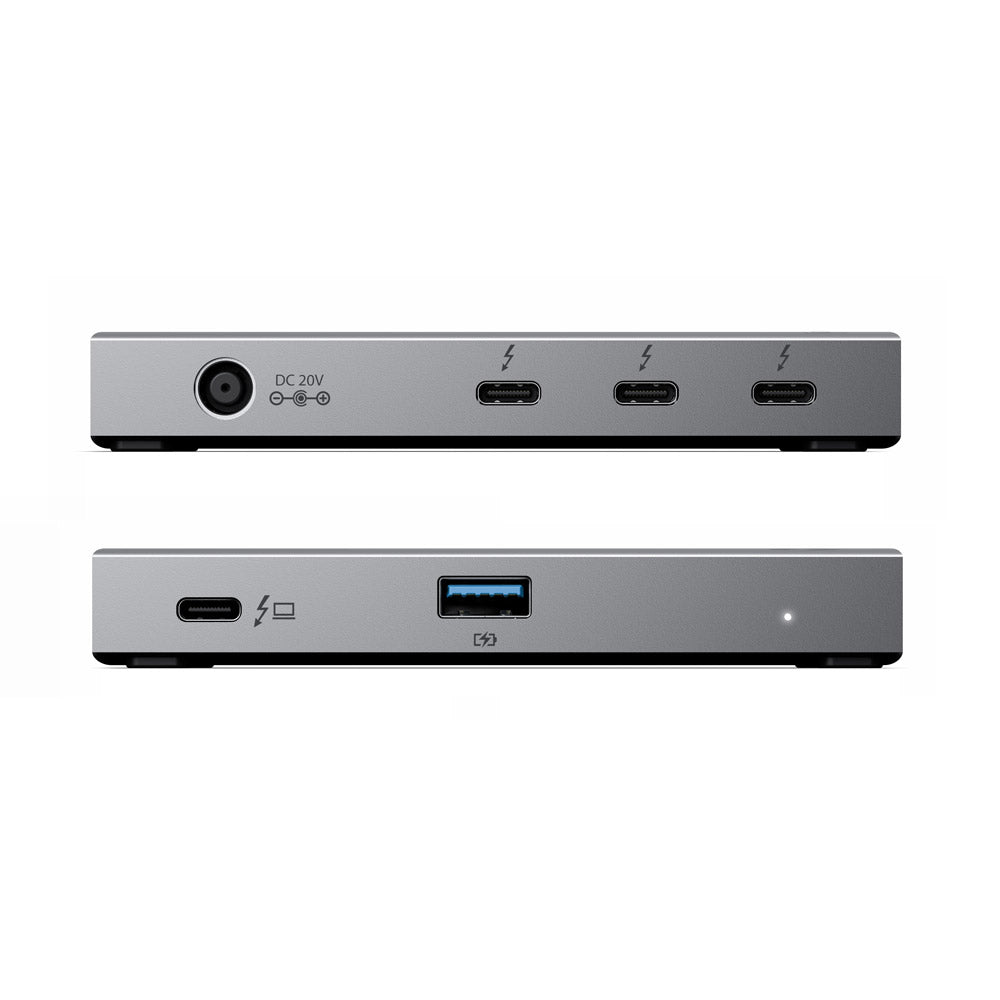

허브 후면의 Thunderbolt/USB-C 포트는 비디오 출력을 제공하며 USB-C 비디오 입력이 장착된 최신 모델 모니터에 직접 연결하도록 설계되었습니다. 허브는 USB-C 비디오 어댑터 또는 비디오 케이블(별도 구매)을 사용하여 레거시 HDMI 및 DisplayPort 입력이 있는 모니터에 연결할 수도 있습니다.
단일 케이블 단순성 -60W 충전
이 허브는 단일 케이블을 통해 모든 작업을 수행합니다. 컴퓨터에 대한 단일 연결을 통해 데이터와 비디오를 전송하는 것 외에도 허브는 USB Power Delivery 기술을 사용하여 노트북을 충전하기 위해 최대 60W의 전력을 제공할 수도 있습니다. 이는 대부분의 주류 노트북에 전원을 공급하기에 충분합니다.
Frequently Asked Questions
General
How many screens can I connect to with this hub?
The number of screens you can connect to with the Thunderbolt BLAZE Hub varies depending on how you connect.
If you connect with Thunderbolt 3 or 4 or USB 4.0: Dual 4K(3840x2160) 60Hz Displays*
If you connect with USB-C 3.x: One 4K(3840x2160) 60Hz Display
* M1 based Apple devices can only support a single external monitor connected via Thunderbolt or USB-C DisplayPort Alternate Mode.
USB-C port must be DisplayPort 1.4 Alternate Mode compatible for 4K output at 60Hz. Machines supporting DisplayPort 1.2 will output resolutions up 2560x1600 at 60Hz or 4K at 30Hz.
If you connect with Thunderbolt 3 or 4 or USB 4.0: Dual 4K(3840x2160) 60Hz Displays*
If you connect with USB-C 3.x: One 4K(3840x2160) 60Hz Display
* M1 based Apple devices can only support a single external monitor connected via Thunderbolt or USB-C DisplayPort Alternate Mode.
USB-C port must be DisplayPort 1.4 Alternate Mode compatible for 4K output at 60Hz. Machines supporting DisplayPort 1.2 will output resolutions up 2560x1600 at 60Hz or 4K at 30Hz.
How much power can this hub supply my laptop?
Hub can provide up to 60W power to your computer.
Compatibility
What operating systems does this support?
Mac OS Sierra 10.13 or later MacBooks with Thunderbolt 3 or 4 ports
Windows 10 or 11 computers with USB-C or Thunderbolt 3 or 4 ports
Windows 10 or 11 computers with USB-C or Thunderbolt 3 or 4 ports
Troubleshooting
No video on connected display
If you can't see anything on a display connected via this hub, please try the following steps to resolve the issue.:
• Ensure that the power supply is plugged into the dock and switched on at the wall
• Check that the USB-C video cable is connected securely between the monitor and device and the device is securely connected to the computer
• Check that the external monitor is turned on and set to the correct input
• Check that your computer is detecting the external display and is set to show video on it
• Check that the USB-C port on the computer that you have connected the dock to is a Thunderbolt port or a USB-C port that supports video output using DisplayPort Alternate Mode
• If the computer doesn’t detect the external monitor or output video after checking the above, restart your computer and attempt again
• If connecting to a monitor with a USB-C or Thunderbolt input, ensure that the cable you are using supports full speed data. Many USB-C cables are intended for charging only and only support USB 2.0.
• Ensure that the power supply is plugged into the dock and switched on at the wall
• Check that the USB-C video cable is connected securely between the monitor and device and the device is securely connected to the computer
• Check that the external monitor is turned on and set to the correct input
• Check that your computer is detecting the external display and is set to show video on it
• Check that the USB-C port on the computer that you have connected the dock to is a Thunderbolt port or a USB-C port that supports video output using DisplayPort Alternate Mode
• If the computer doesn’t detect the external monitor or output video after checking the above, restart your computer and attempt again
• If connecting to a monitor with a USB-C or Thunderbolt input, ensure that the cable you are using supports full speed data. Many USB-C cables are intended for charging only and only support USB 2.0.
Video drops out intermittently
If your connected display is flickering during use, please try the following steps to resolve the issue.
Check that the USB-C video cable is connected securely between the display and device
Check that the device is securely connected to the computer
Check that the USB-C video cable being used to connect to the display is of good quality and isn’t damaged
Check that the USB-C video cable is connected securely between the display and device
Check that the device is securely connected to the computer
Check that the USB-C video cable being used to connect to the display is of good quality and isn’t damaged
Computer doesn’t start charging when the device is connected
If your connected display is flickering during use, please try the following steps to resolve the issue.
Ensure that the power supply is connected at the wall and turned on, and the USB-C cable supplying power is securely connected to the computer Verify that the port on the computer is a Thunderbolt port or a USB-C port that supports charging from a USB PD power source
Ensure that the power supply is connected at the wall and turned on, and the USB-C cable supplying power is securely connected to the computer Verify that the port on the computer is a Thunderbolt port or a USB-C port that supports charging from a USB PD power source
