새로운 출시
Clarity Fold Touch 32인치 4K UHD 모니터, 65W 전원 공급, 웹캠, 터치스크린 및 접이식 스탠드
Clarity Fold Touch 32인치 4K UHD 모니터, 65W 전원 공급, 웹캠, 터치스크린 및 접이식 스탠드
정가
₩2,519,991
판매 가격
₩2,519,991
정가
₩2,799,990
수령 가능 여부를 로드할 수 없습니다.
사양
사양
결제 및 보안
결제 방법
귀하의 결제 정보는 안전하게 처리됩니다. 당사는 신용카드 정보를 저장하지 않으며 귀하의 신용카드 정보에 접근할 수 없습니다.
세계 최고의
32인치 4K 터치스크린 모니터
맥과 윈도우용
65W USB-C 충전 도크
비교할 수 없는 4K 터치스크린
가장자리에서 가장자리까지 디스플레이
직접 체험해 보세요 귀하의 작업에
그래픽 디자이너부터 문서 서명자까지 전 세계 전문가들이 Clarity Touch의 정밀 4K 터치스크린을 사용하여 작업 흐름을 단순화합니다. 직관적인 멀티터치 제스처와 정밀한 스타일러스 지원을 갖춘 Clarity Touch를 통해 Mac 또는 Windows 컴퓨터를 32인치 iPad™처럼 사용할 수 있습니다.
3840x2160
해상도
16:9
종횡비
320니트
최대 밝기
60Hz
재생률
178°
시야각
98%
sRGB
터치 디자인 전문가용
법적
Clarity Touch를 사용하면 판사, 변호사 및 증인이 문서 및 기타 증거를 쉽게 탐색하고 주석을 달고 서명할 수 있어 재판 준비가 간소화되고 프레젠테이션이 향상됩니다.
건축가
Clarity Active Stylus를 사용하면 건축가는 디지털 청사진과 계획을 쉽게 생성, 수정 및 표시할 수 있으며, 멀티터치 기능을 사용하면 설계를 쉽게 검토하고 이해관계자에게 제시할 수 있습니다.
헬스케어
Clarity의 직관적인 멀티터치를 사용하면 환자의 X-레이를 쉽게 검토할 수 있으며, Clarity Active Stylus를 사용하면 의사가 신속하게 이미지에 표시를 하고 주요 문서에 서명할 수 있습니다.
제조
Clarity Touch를 사용하면 엔지니어는 사전 제작 단계에서 직접 설계를 수행한 다음 정밀 스타일러스를 사용하여 다음 개정판에 필요한 변경 사항을 마크업할 수 있습니다.

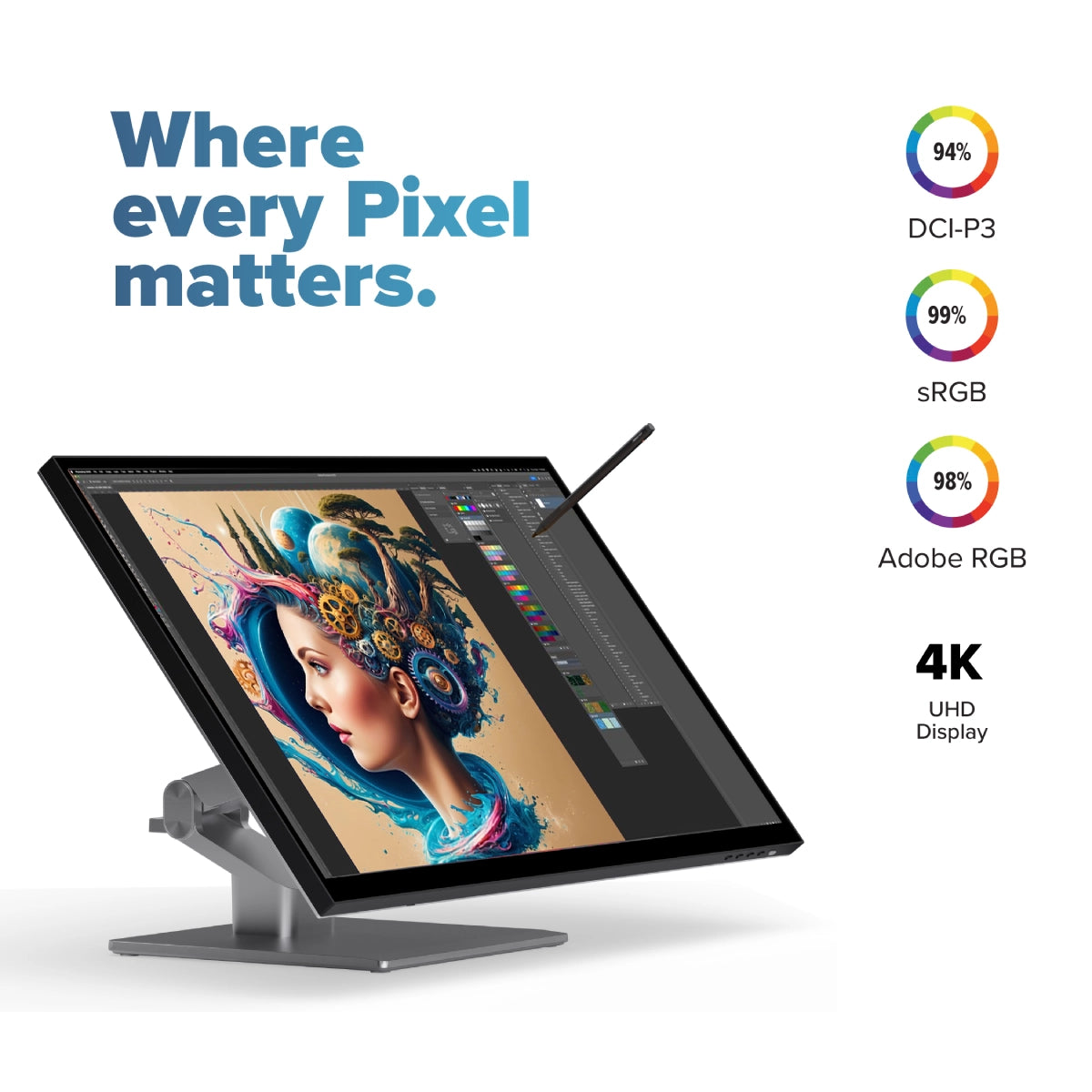

밝고 컬러 정확함
Clarity의 글로시 화면은 선명하고 생생하며 정확한 색상을 제공하며 98% sRGB 및 Adobe RGB 범위와 Avg. ΔE는 1보다 훨씬 낮습니다.
참조 4K의 미세한 디테일
Clarity Max Fold의 멋진 32인치 4K(3840x2160) 화면은 두 개의 창이 나란히 있어 멀티태스킹을 위한 충분한 화면 공간을 제공하거나 최신 창작물의 가장 세밀한 세부 사항을 검사할 수 있습니다.

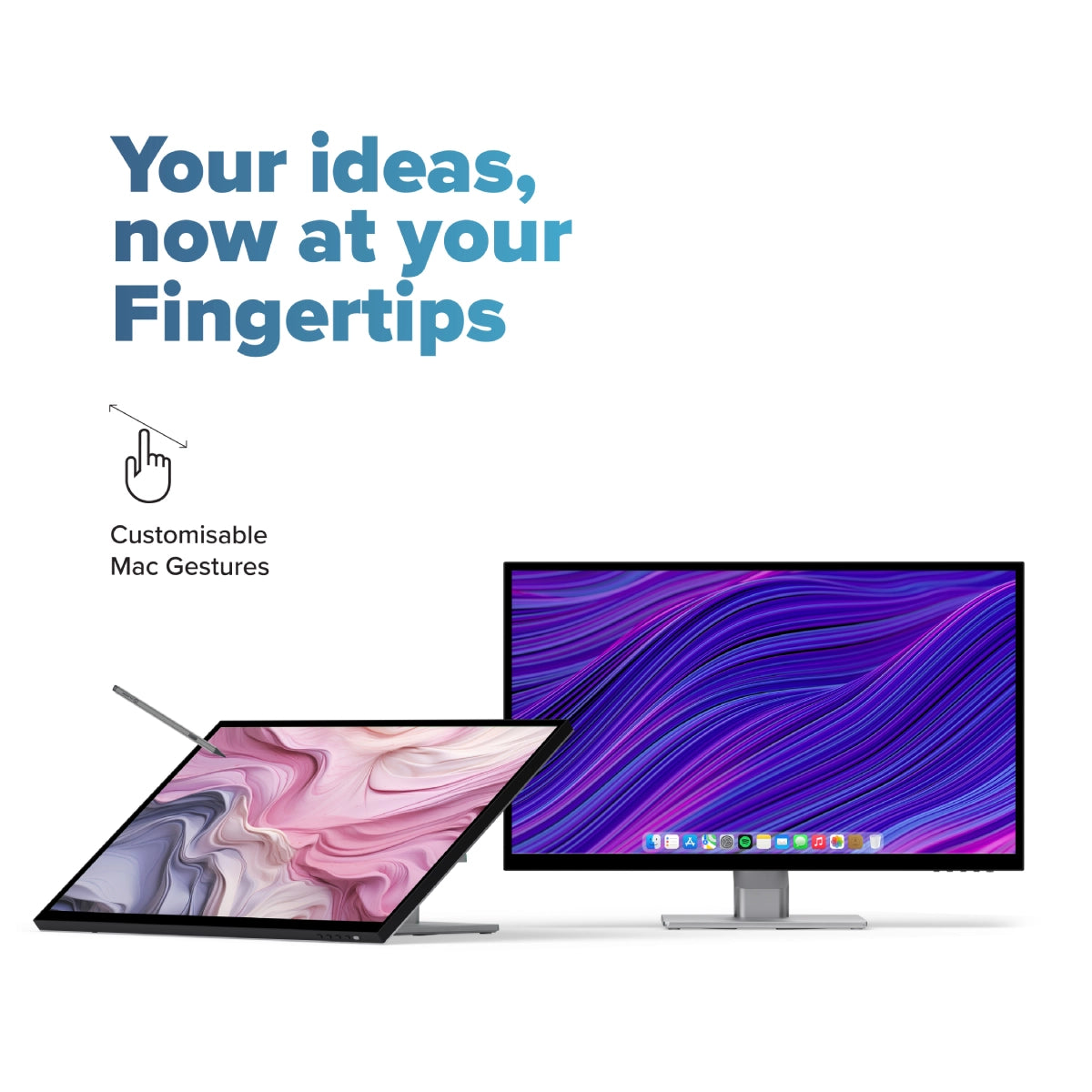

함께 작동 맥과 윈도우
작업을 수행하기 위해 Mac을 사용하든 Windows를 사용하든 Clarity의 직관적인 멀티터치 제스처와 압력 감지 스타일러스 지원이 즐겨 사용하는 응용 프로그램에서 완벽하게 지원되므로 안심하세요.

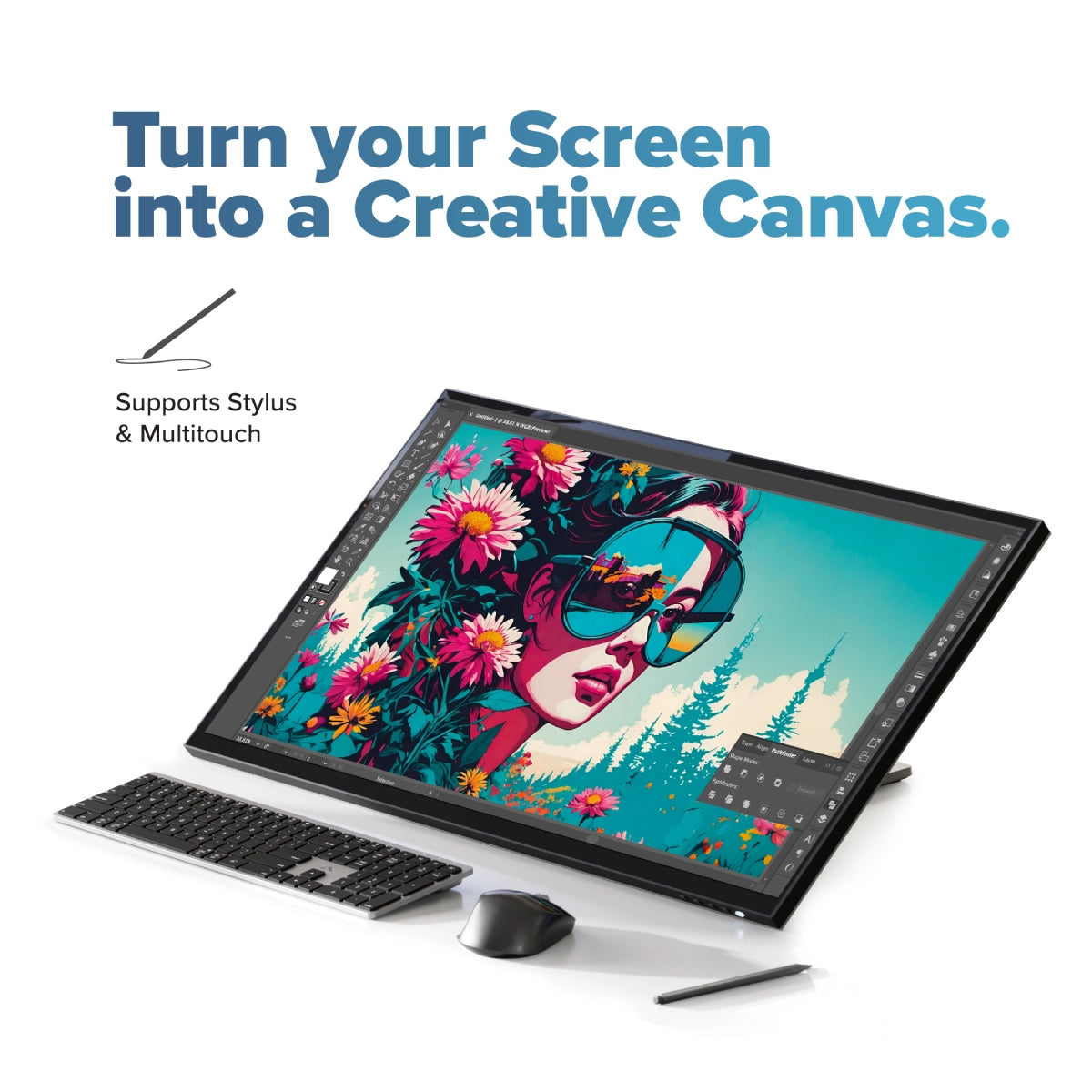

마크업, 사인 & 디자인
스냅온 Clarity Active Stylus(별도 판매)와 함께 사용하면 Clarity Touch는 다음 번 큰 아이디어를 위한 완벽한 드로잉 보드가 되거나 비즈니스에 필요한 문서에 주석을 달거나 서명하는 편리한 방법이 됩니다.
4096 레벨의 압력 감도와 기울기 지원 덕분에 당사의 스타일러스는 Photoshop, Illustrator 및 아티스트가 좋아하는 기타 앱에서 사용하기에 이상적이며, 누구나 몇 달 동안 지속되는 배터리 수명과 페어링이 필요 없는 연결성을 즐길 수 있습니다.

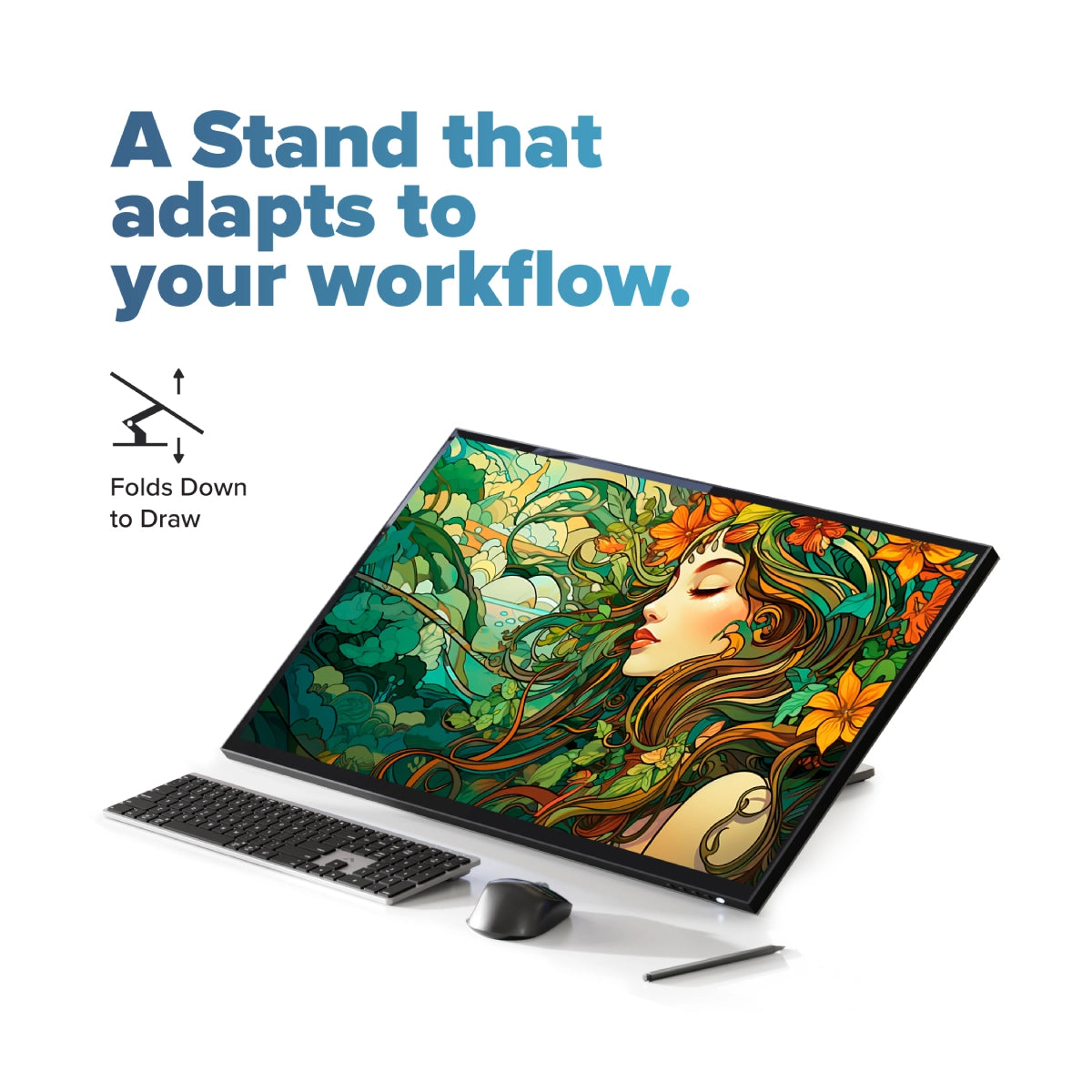

하이브리드 스탠드 터치용으로 제작됨
Clarity Max Fold의 인체공학적 스탠드는 몇 초 만에 튼튼하고 지지력이 있는 표면으로 접혀 몇 시간 동안 편안하게 스타일러스를 사용할 수 있습니다. 스타일러스 사용이 끝나면 일상적인 작업을 위해 모니터를 편안한 시선까지 쉽게 올릴 수 있습니다.

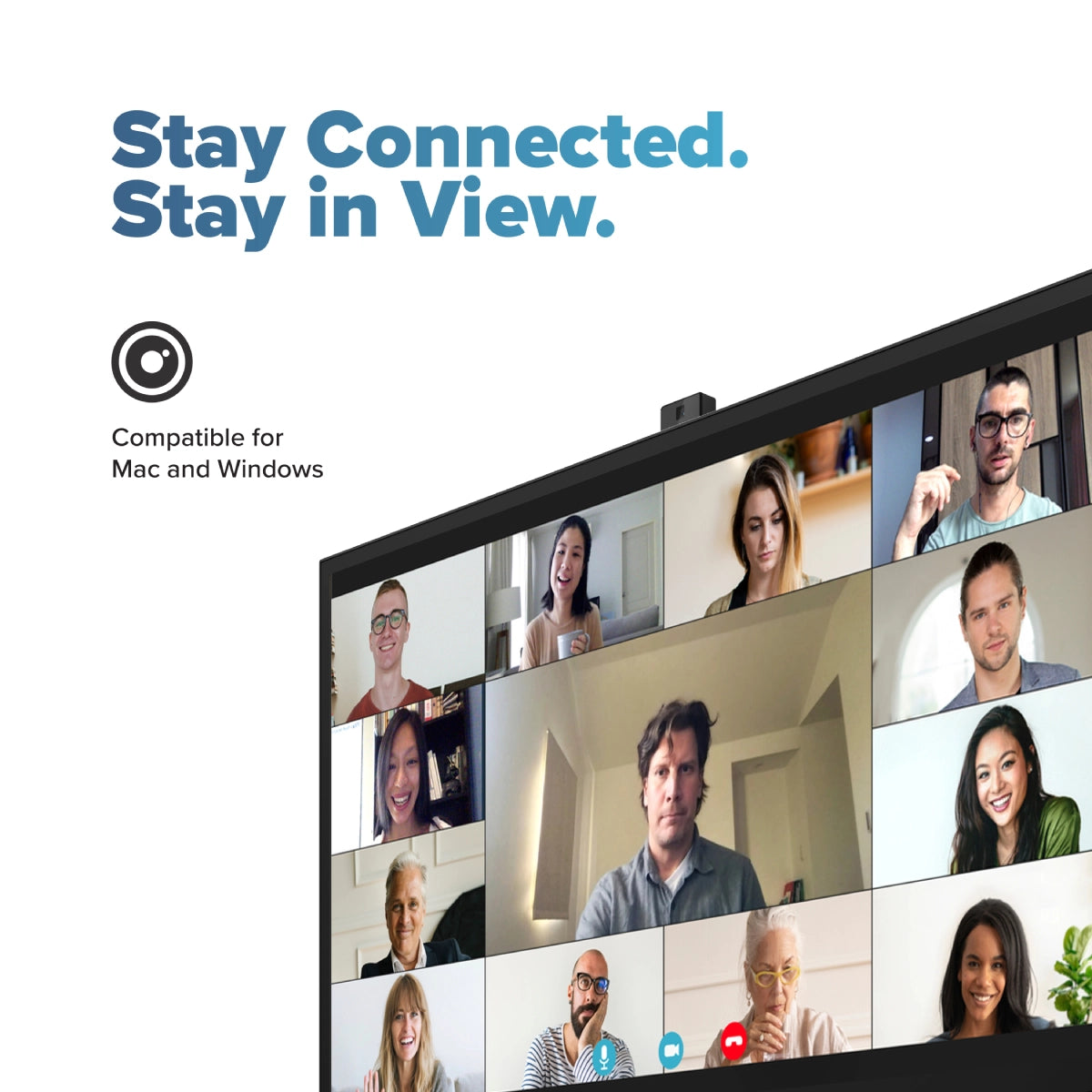

자신을 확인하세요 큰 화면
Clarity Max Touch의 스마트 팝업 웹캠은 최고의 각도를 포착할 수 있는 완벽한 위치에 있습니다. 통화가 끝나면 웹캠이 자동으로 모니터 안으로 들어가 개인정보를 보호합니다.

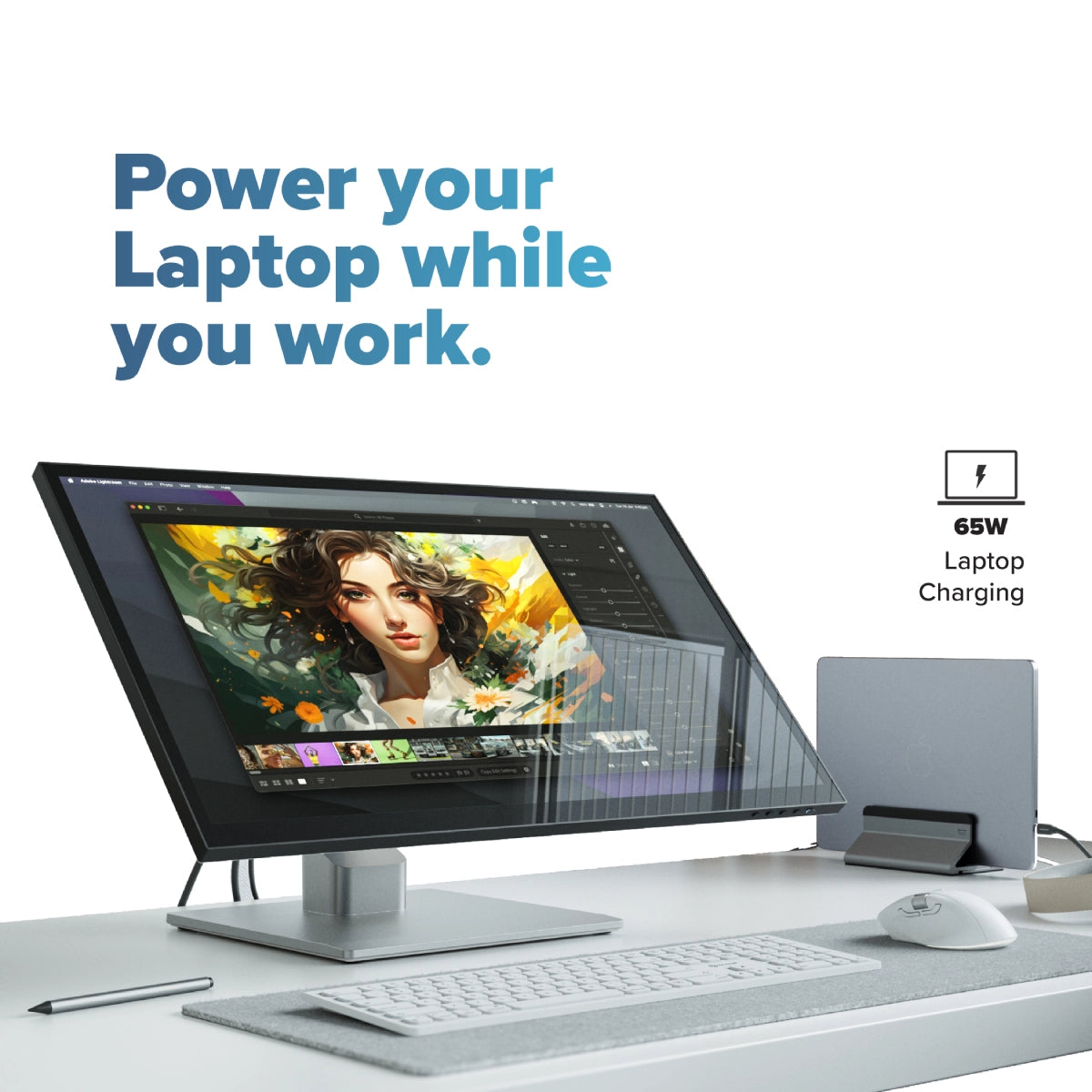

노트북 충전 USB-C 허브
모든 Clarity 모니터에 통합된 견고한 USB-C 허브는 노트북을 충전하고 두 개의 USB 장치에 연결하여 연결의 복잡성을 해소합니다.
1
USB-A 포트
좋아하는 액세서리에
2
USB-B 포트
오래된 컴퓨터에 대한 데이터 연결.
3
HDMI 포트
4K 비디오 제공
4
디스플레이포트
4K 비디오 제공
5
USB-C 포트
4K 비디오 및 65W 노트북 충전
6
오디오 출력
헤드폰이나 스피커의 경우
7
전원 입력
모니터에 전원 공급
1
USB-A 포트
좋아하는 액세서리에
2
USB-B 포트
오래된 컴퓨터에 대한 데이터 연결.
3
HDMI 포트
4K 비디오 제공
4
디스플레이포트
4K 비디오 제공
5
USB-C 포트
4K 비디오 및 65W 노트북 충전
6
오디오 출력
헤드폰이나 스피커의 경우
7
전원 입력
모니터에 전원 공급
Frequently Asked Questions
General
How do I recharge my laptop with Clarity?
To charge your laptop via Clarity (up to 90W Clarity, 65W Clarity Pro or Pro Touch), simply connect it to the monitor via a USB-C cable which supports the required wattage.
However, it does need to plug into a USB-C port compatible with PD (Power Delivery) on your computer.
These can sometimes be identified by the presence of a battery icon next to the port on your laptop, but often you’ll need to check the user manual or manufacturer’s website to figure out which USB-C ports support PD.
All Thunderbolt 3 and 4 ports support PD.
However, it does need to plug into a USB-C port compatible with PD (Power Delivery) on your computer.
These can sometimes be identified by the presence of a battery icon next to the port on your laptop, but often you’ll need to check the user manual or manufacturer’s website to figure out which USB-C ports support PD.
All Thunderbolt 3 and 4 ports support PD.
How do I use Clarity's USB-A ports?
In order for your computer to access devices you've plugged into Clarity's two rear USB-A ports, you need to ensure your computer is:
1. Connected to Clarity via either:Clarity's USB-C port or Clarity's USB-B port
2. Clarity "Active USB" mode is set to the same USB port you've connected to your computer.
To change Clarity's "Active USB" mode, navigate to "USB Switch" in the "Other Settings" menu of Clarity's main menu.
For example: if your computer is connected to Clarity via USB-C, you would select "Type-C" in the "USB Switch" menu.
1. Connected to Clarity via either:Clarity's USB-C port or Clarity's USB-B port
2. Clarity "Active USB" mode is set to the same USB port you've connected to your computer.
To change Clarity's "Active USB" mode, navigate to "USB Switch" in the "Other Settings" menu of Clarity's main menu.
For example: if your computer is connected to Clarity via USB-C, you would select "Type-C" in the "USB Switch" menu.
Does Clarity support VESA mounting?
Yes, Clarity is compatible with 100x100mm VESA mounts, and includes four mounting screws.
What size mounting screws should I use with Clarity monitors?
The following assembly instructions can also be found in your product manual, which is available to download from the top of this page.
1. Remove the Clarity Fold Stand from its packaging and insert the stand stem into the base. Secure these with the thumbscrew underneath the fold stand’s base.
2. Place your Clarity Touch monitor face down on a secure, flat surface like a table.
3. Insert the stand’s monitor plate into the VESA mount on the back of your Clarity Monitor, then secure it in place with the four mounting screws provided.
1. Remove the Clarity Fold Stand from its packaging and insert the stand stem into the base. Secure these with the thumbscrew underneath the fold stand’s base.
2. Place your Clarity Touch monitor face down on a secure, flat surface like a table.
3. Insert the stand’s monitor plate into the VESA mount on the back of your Clarity Monitor, then secure it in place with the four mounting screws provided.
Can I use Clarity Touch for pressure-sensitive drawing in Photoshop/Illustrator/Clip Studio?
Yes, when combined with the Clarity Active Stylus (ALASS2) all Clarity Touch monitors support up to 4096 levels of pressure sensitive pen input on Windows and Mac (with our Clarity Touch Drivers for macOS installed), fully compatible with drawing apps such as Adobe’s Photoshop and Illustrator, AutoDesk Sketchbook, Clip Studio Paint and even Microsoft’s OneNote.
If you encounter an app where the pressure-sensitive input doesn’t seem to be working, please reach out and let us know at support@alogic.co and we’ll help figure out what’s going wrong.
Touchscreen
(Windows 10/11) My touch input is controlling the wrong screen!
Sometimes, Clarity Pro Touch’s input will be applied by your computer to another display instead of Pro Touch.
Moving your mouse onto Clarity before using the touchscreen usually resolves this issue.Solution - Windows
If you’re using Windows 10 or 11 with multiple displays you can specify which monitor you want touch input to apply to, which saves you having to mouse over to that display before using touch.
To do this, launch Control Panel, click “Hardware and Sound” then ‘Calibrate the screen for pen or touch input’ from the menu.
Select “Setup”, choosing “Pen Input” if you’re using an active stylus or “Touch Input” if you’re using your fingers or a capacitive stylus, then follow the onscreen instructions.
If completing this process doesn’t resolve your issue, try setting up for the other kind of input.
Moving your mouse onto Clarity before using the touchscreen usually resolves this issue.Solution - Windows
If you’re using Windows 10 or 11 with multiple displays you can specify which monitor you want touch input to apply to, which saves you having to mouse over to that display before using touch.
To do this, launch Control Panel, click “Hardware and Sound” then ‘Calibrate the screen for pen or touch input’ from the menu.
Select “Setup”, choosing “Pen Input” if you’re using an active stylus or “Touch Input” if you’re using your fingers or a capacitive stylus, then follow the onscreen instructions.
If completing this process doesn’t resolve your issue, try setting up for the other kind of input.
(macOS) My touch input is controlling the wrong screen!
When using a touchscreen monitor on an Apple computer, without installing Clarity Pro Touch's macOS drivers, your input is applied to the monitor your cursor was on when you started touching.
To ensure your touch input is registered on the correct screen, you can:
(Recommended) Install the Clarity Pro Touch's macOS drivers and use the "Identify" tool of UPDD Daemon to designate the correct screen for touch input. Use Clarity Pro Touch as your only monitor (including your inbuilt laptop screen). Move your cursor onto Clarity Pro Touch’s screen before using touch input.
To ensure your touch input is registered on the correct screen, you can:
(Recommended) Install the Clarity Pro Touch's macOS drivers and use the "Identify" tool of UPDD Daemon to designate the correct screen for touch input. Use Clarity Pro Touch as your only monitor (including your inbuilt laptop screen). Move your cursor onto Clarity Pro Touch’s screen before using touch input.
Troubleshooting
I've connected to Clarity via USB-C. Why aren't I getting any video?
In order to connect to Clarity via USB-C, it must be plugged into a USB-C port compatible with "DP Alt Mode" - or a Thunderbolt 3/4 port.DP Alt Mode compatible USB-C ports are sometimes marked with a "DP" symbol, but they are often identical to regular USB-C ports. If none of your USB-C ports have symbols next to them, you'll need to consult the product manual or the manufacturer's website to find out which ports are DP Alt Mode compatible.If your computer does not support USB-C DP Alt Mode or Thunderbolt 3/4, we recommend connecting via HDMI or DisplayPort. If your laptop does not support these, you can connect using an ALOGIC Universal Dock, which leverage DisplayLink technology to deliver video over non-DP Alt Mode USB-C connections.
When I wake my computer from sleep mode, Clarity doesn’t come back on.
In some cases, it’s possible for Clarity not to recognize the wake-up signal from a connected computer. This issue occurs most often when Clarity is connected to a computer through a dock.
To resolve the issue, restart Clarity by pressing the power button twice – it should recognize the connected device as part of its boot-up sequence.
If this issue persists, we recommend trying the following steps to isolate the issue:
If your problem reoccurs and these steps do not help resolve it, please contact ALOGIC support (support@alogic.co).
To resolve the issue, restart Clarity by pressing the power button twice – it should recognize the connected device as part of its boot-up sequence.
If this issue persists, we recommend trying the following steps to isolate the issue:
- • Connect Clarity directly to your computer
- • Try connecting with a different cable or port. ie. Use DisplayPort instead of USB-C
- • Update your computer’s operating system.
If your problem reoccurs and these steps do not help resolve it, please contact ALOGIC support (support@alogic.co).
Why can't I select/enable HDR?
If you cannot select HDR (it's not appearing in the "Picture Settings" menu), this is likely due to one of two reasons:
1. You're connecting to Clarity with USB-C. HDR is only available when connected via HDMI or DisplayPort.
2. You're using the monitor in SRGB, Uniformity or Adobe RGB mode. Both video presets are designed to provide perfect colour reproduction over a limited colour gamut. HDR produces colours outside these limited gamuts and thus can't be used at the same time. You can re-enable HDR by switching back to "Standard" mode in the Professional Settings menu.
1. You're connecting to Clarity with USB-C. HDR is only available when connected via HDMI or DisplayPort.
2. You're using the monitor in SRGB, Uniformity or Adobe RGB mode. Both video presets are designed to provide perfect colour reproduction over a limited colour gamut. HDR produces colours outside these limited gamuts and thus can't be used at the same time. You can re-enable HDR by switching back to "Standard" mode in the Professional Settings menu.
Clarity isn't switching between landscape and portrait when I rotate the screen!
If Clarity is not automatically switching between portrait and landscape mode when you physically rotate the screen, it is likely because the screen's "Gravity Sensor" has been disabled.Reenable this in "Other Settings" menu to use this feature.
Why isn't my laptop charging?
Not all laptop USB-C ports support charging using USB-C Power Delivery. Many laptops only support charging on one of their USB-C ports.
Ensure you connect the charging cable to a port on the laptop which supports charging.
Ensure you connect the charging cable to a port on the laptop which supports charging.
Why aren't Clarity's speakers working?
In order to use Clarity's speakers, you must select "27F34KCPD" as your active sound output device in your computer's settings.Additionally, Clarity's speakers will not function if you have an audio device connected to Clarity's rear 3.5mm audio port.
Webcam
What resolution is Clarity’s webcam?
Clarity Max Pro/Touch’s webcam has an 8MP sensor, or 8 million pixels. This is roughly equivalent to a 4K image.
Does Clarity Pro’s webcam have a microphone?
Yes, Clarity Pro’s webcam includes an array of four microphones to capture sound.
What programs does Clarity Pro’s smart webcam support?
Clarity Pro’s smart webcam slides up and down whenever your computer’s operating system (macOS, Windows, Chrome) attempts to access a webcam feed, not specific integrations with each application.
As a result, the webcam will work with any program attempting to access a webcam.
This includes videoconfering programs such as:
Microsoft Teams
Skype
Google Meet
Slack
Cisco Webex
Zoom
GoTo Meeting
As well as livestreaming programs like:
Open Broadcaster Software (OBS)
Xplit
Streamlabs
As a result, the webcam will work with any program attempting to access a webcam.
This includes videoconfering programs such as:
Microsoft Teams
Skype
Google Meet
Slack
Cisco Webex
Zoom
GoTo Meeting
As well as livestreaming programs like:
Open Broadcaster Software (OBS)
Xplit
Streamlabs
How do I adjust the webcam’s framing?
To adjust the framing of your webcam, you first need to slide the webcam up.
Open a program which requires the webcam – on Windows 11 we recommend the “Camera” app or “Photo Booth” on macOS.
Open this application and switch the active camera to Clarity Pro’s – this can be done via the “Camera” menu in Photo Booth or hitting the “Switch Camera” button in Camera – see below.
Once you’ve activated Clarity Pro’s webcam, it will slide up out of the monitor. You can now adjust its vertical framing using the scroll wheel on the rear of the camera.
Open a program which requires the webcam – on Windows 11 we recommend the “Camera” app or “Photo Booth” on macOS.
Open this application and switch the active camera to Clarity Pro’s – this can be done via the “Camera” menu in Photo Booth or hitting the “Switch Camera” button in Camera – see below.
Once you’ve activated Clarity Pro’s webcam, it will slide up out of the monitor. You can now adjust its vertical framing using the scroll wheel on the rear of the camera.
My computer can't see Clarity’s webcam!
For Clarity’s webcam to function, your computer needs to be connected to either the monitor's USB-C or USB-B port.
Then you need to ensure that's the active USB port is set to the same - either USB-C or USB-B. This can be set via the "USB-Switch" setting of the monitor's "USB Options" menu.
If these two are correct and you can't see your Clarity’s webcam listed in your system's available webcams (listed as either 27C4KPDWT), restart the monitor and your computer.
If the webcam still doesn't appear, please contact ALOGIC support: support@alogic.co and we'll help you resolve your issue.
Clarity’s webcam isn't sliding back down!
1. First, do not try to push Clarity's webcam back into the chassis. This can permanently damage the motors.
2. Then ensure that any program accessing your webcam has been closed. This can include messaging, livestreaming, audio recording and video capture applications.
3. Ensure Clarity’s active USB is set to the USB cable connecting your computer and Clarity, USB-C or USB-B. You can find this option in Clarity's menu by navigating to USB-Options --> USB Switch.
