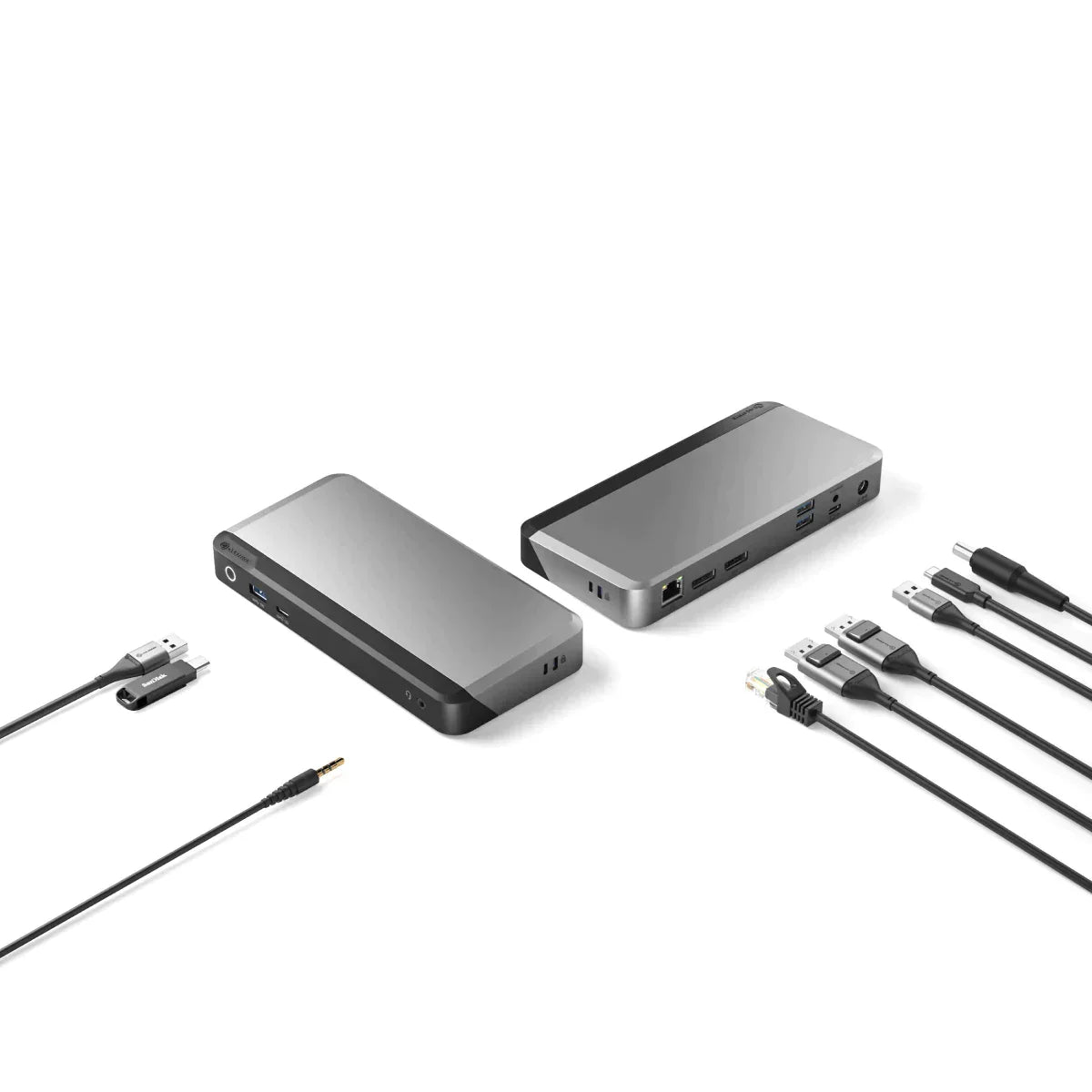

MX2 USB-C 듀얼 디스플레이 DP Alt. 모드 도킹 스테이션 - 100W 전력 공급 포함

Yes, the MX2-100 can deliver up to 100W of power to connected laptops - however this requires your computer to be connected via either a USB-C PD (Power Delivery) port or Thunderbolt 3/4.

Not every USB-C port on notebook computers supports charging. If your computer doesn’t start charging when a power supply is connected to the device and the device is connected to your computer, try a different USB-C port on your machine or consult the computer’s manual to determine which ports accept power from USB PD power sources.

The quantity and resolutions of video outputs supported depend on the capability of the connected computer.

The table below provides the maximum output resolutions available for Windows computers based on the version of DisplayPort Alternate mode supported on their USB-C ports.

DisplayPort Alt Mode Version	Single Display	Dual Display
		MST Host (Independent/Extended)
DP1.4 (HBR3) with DSC	5120x2880 60Hz	2x 3840x2160 60Hz
DP1.4 (HBR3) without DSC	3840x2160 60Hz	2x 3840x2160 30Hz
DP1.2 (HBR2)	3840x2160 30Hz	2x 1920x1080P 60Hz

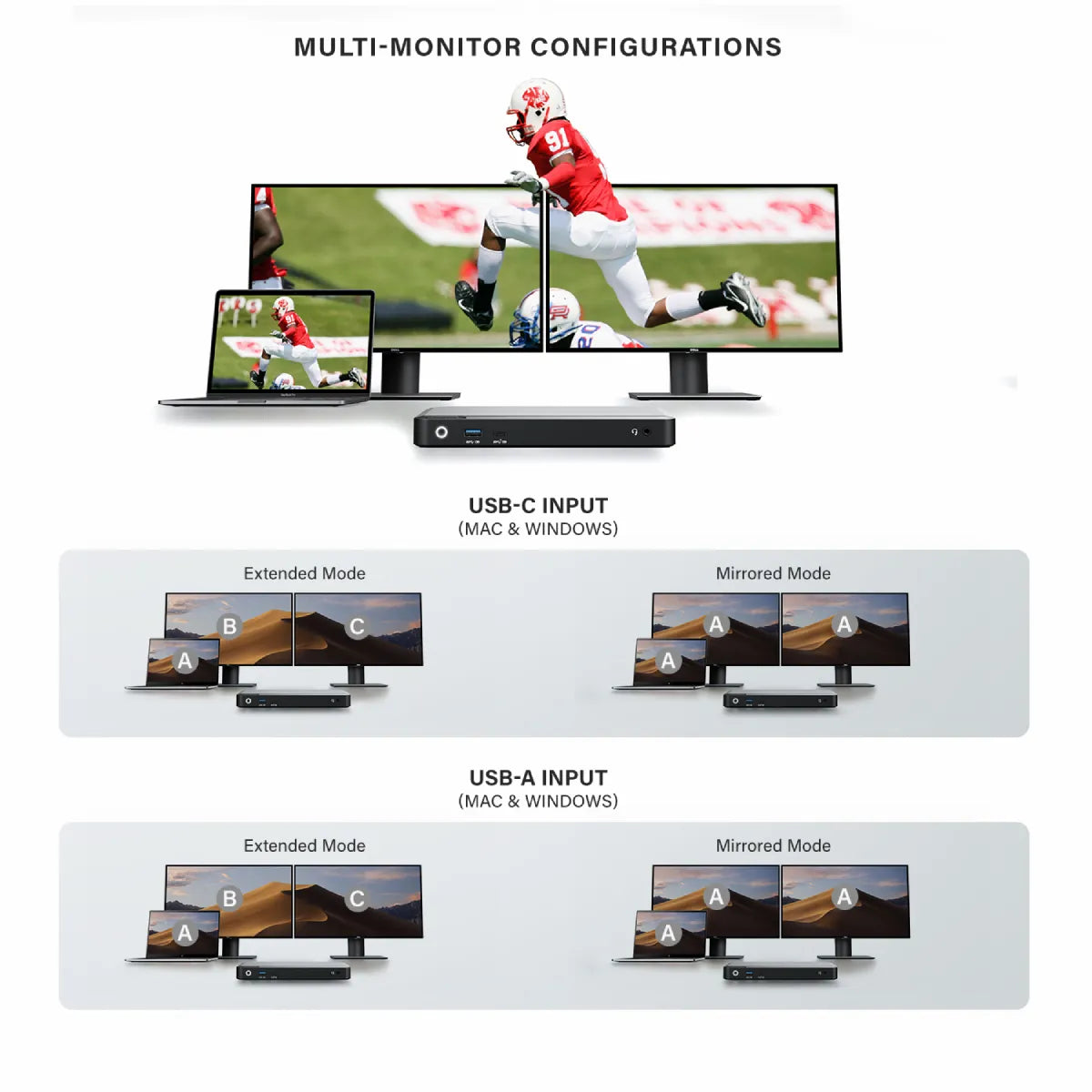

When connected to Apple Mac computers display outputs will be mirrored. When used with a Mac this docking station is suitable for use with a single monitor but cannot be used for multiple monitor extended desktop configurations.

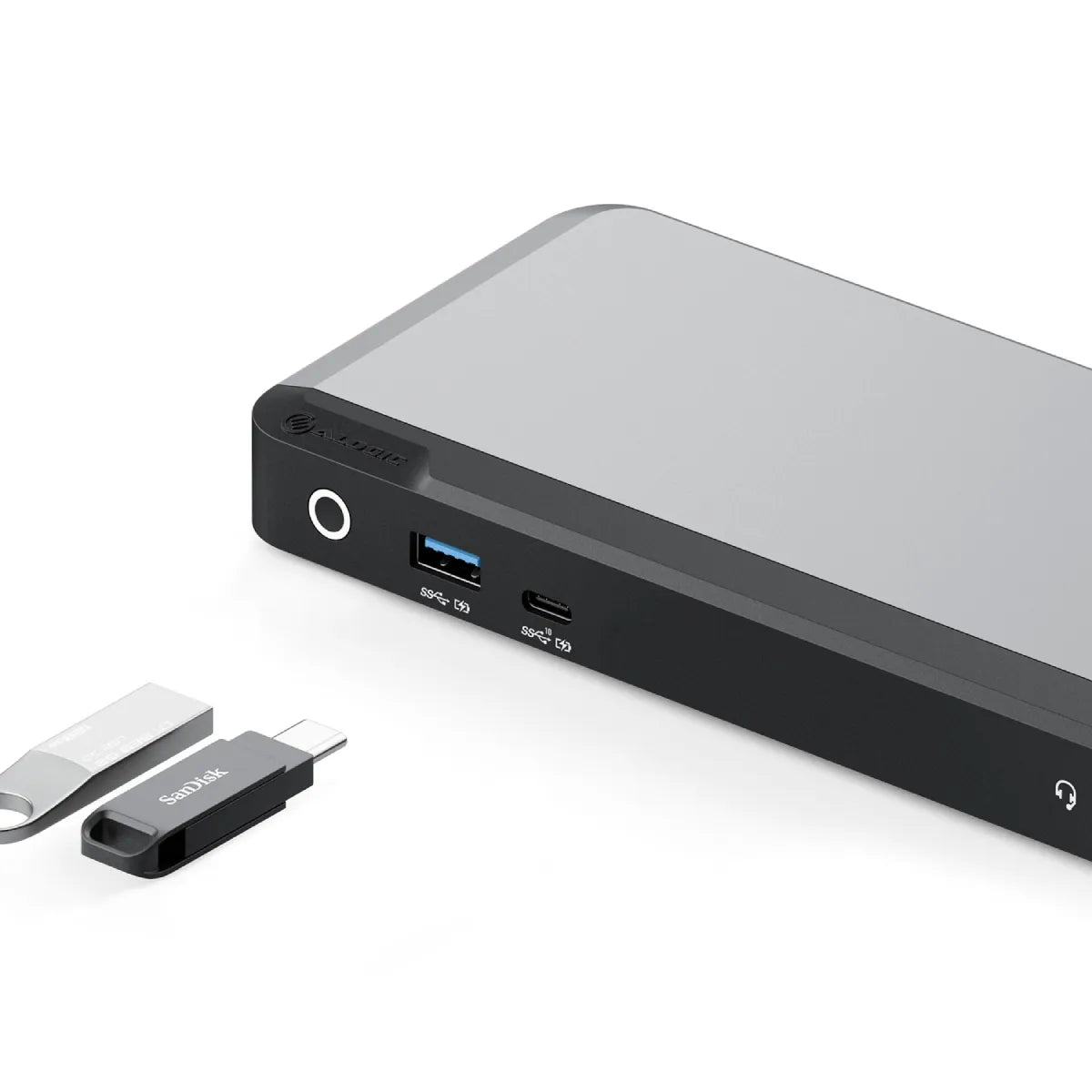

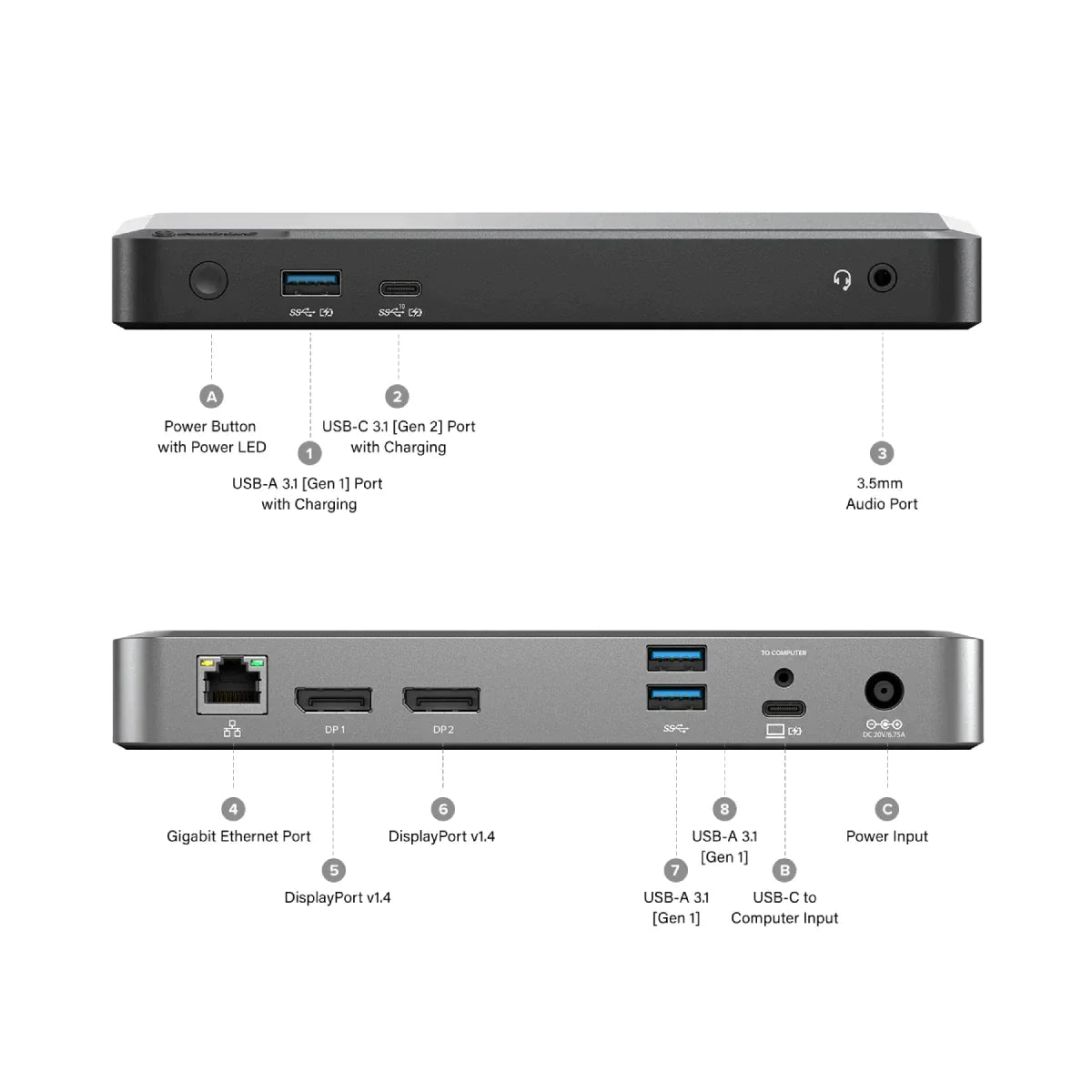

The USB-C ports on the front of the unit supports rapid charging of mobile devices. If charging a device, ensure you connect it to these ports.

Ensure that the power supply is plugged into the dock and switched on at the wall
Check that the USB-C video cable is connected securely between the monitor and device and the device is securely connected to the computer
Check that the external monitor is turned on and set to the correct input
Check that your computer is detecting the external display and is set to show video on it

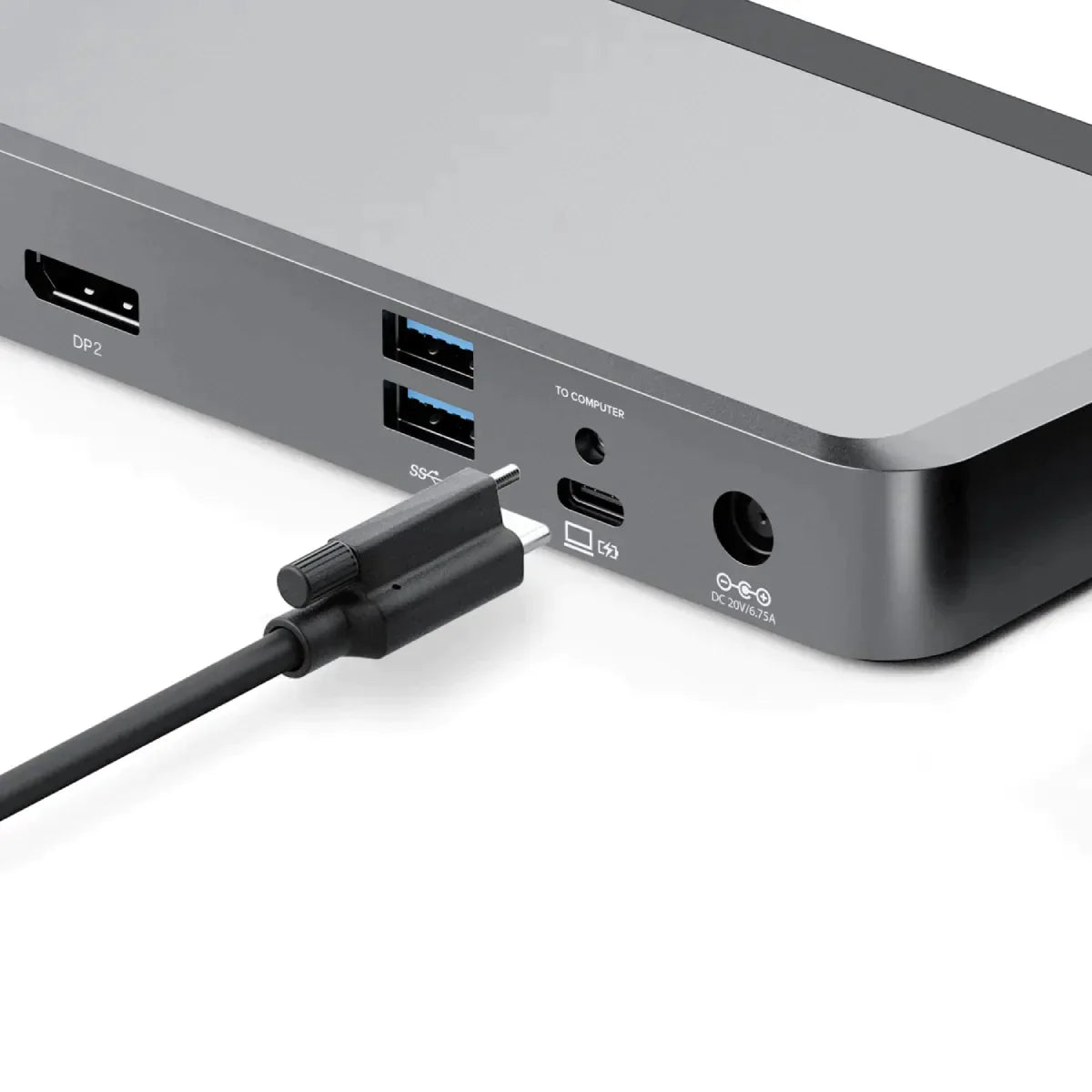

Check that the USB-C port on the computer that you have connected the dock to is a Thunderbolt port or a USB-C port that supports video output using DisplayPort Alternate Mode
If the computer doesn’t detect the external monitor or output video after checking the above, restart your computer and attempt again
If connecting to a monitor with a USB-C or Thunderbolt input, ensure that the cable you are using supports full speed data. Many USB-C cables are intended for charging only and only support USB 2.0.

Ensure that the power supply is connected at the wall and turned on, and the USB-C cable supplying power is securely connected to the computer Verify that the USB-C port on the computer supports charging from a USB PD power source

Not every USB-C port on notebook computers supports charging. If your computer doesn’t start charging when a power supply is connected to the device and the device is connected to your computer, try a different USB-C port on your machine or consult the computer’s manual to determine which ports accept power from USB PD power sources.

Ensure that the dock is switched on and the power button is illuminated - the dock does not supply power to the computer when it is switched off

If your connected display is flickering during use, please try the following steps to resolve the issue.

Check that the USB-C video cable is connected securely between the display and device
Check that the device is securely connected to the computer
Check that the USB-C video cable being used to connect to the display is of good quality and isn’t damaged
